Tensile Architecture Fabric – High Performance Membrane Materials for Modern Structures
Tensile architecture fabric is a high-strength, lightweight architectural membrane material specifically engineered for modern tensile structures, large-span roofs, and innovative architectural designs. As a leading manufacturer, DERFLEX supplies premium tensile fabric solutions that combine durability, flexibility, weather resistance, and aesthetic performance for global architectural projects.
With decades of experience in coated fabric manufacturing, DERFLEX tensile architecture fabrics are widely used in stadium roofs, transportation hubs, commercial canopies, exhibition halls, cultural landmarks, and iconic tensile membrane structures worldwide.
What Is Tensile Architecture Fabric?
Tensile architecture fabric, also known as tensile membrane fabric or architectural fabric membrane, is a technical textile designed to carry loads primarily through tension rather than compression. These fabrics are coated or laminated with high-performance polymers such as PVC, PVDF, PTFE, or ETFE to enhance mechanical strength, UV resistance, fire retardancy, and long-term weather durability.
Unlike traditional building materials, tensile fabrics enable large column-free spans, lightweight structures, and expressive architectural forms, making them a preferred solution for modern architecture.
Core Characteristics
- High tensile strength and dimensional stability
- Lightweight yet capable of large spans
- Excellent weather and UV resistance
- Fire retardant and safety compliant
- Design flexibility and aesthetic versatility
DERFLEX Tensile Architecture Fabric Product Range

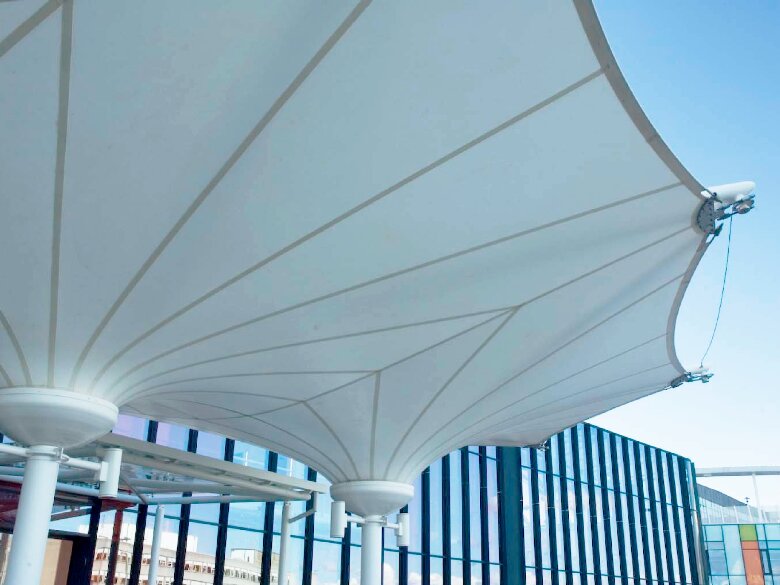

1. PVC Coated Tensile Fabric
PVC coated polyester fabric is the most widely used tensile membrane material due to its cost-effectiveness, flexibility, and reliable performance. DERFLEX PVC tensile fabrics are treated with PVDF or acrylic lacquer to enhance self-cleaning, UV protection, and lifespan.
- Base fabric: High-tenacity polyester
- Coating: PVC with PVDF / acrylic topcoat
- Service life: 10–20 years
- Applications: Canopies, walkways, shade structures, tensile roofs

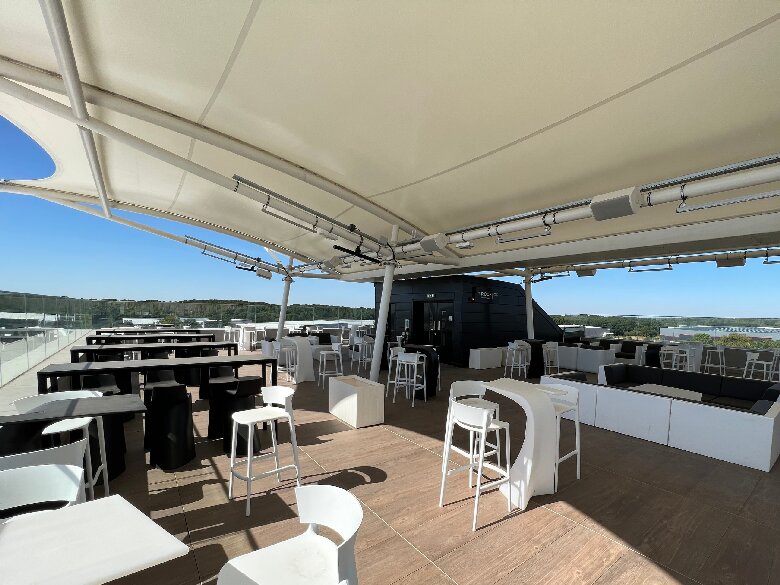

2. PTFE Fiberglass Membrane
PTFE tensile architecture fabric is known for its exceptional durability and chemical resistance. It is commonly used in landmark projects requiring long service life and superior fire performance.
- Base fabric: Fiberglass
- Coating: PTFE
- Service life: 25–30+ years
- Applications: Stadium roofs, airports, iconic buildings
3. ETFE Architectural Film
ETFE fabric is a transparent, lightweight architectural film material offering high light transmission and energy efficiency. It is increasingly used for modern façade and roof systems.
- Light transmission: Up to 95%
- Ultra-lightweight structure
- Self-cleaning surface
- Applications: Skylights, façade cushions, atriums
Technical Specifications of Tensile Architecture Fabric
| Property | Typical Range |
|---|---|
| Weight | 650 – 1350 g/m² |
| Tensile Strength | 3000 – 8000 N / 5cm |
| Fire Rating | B1, M2, NFPA 701, DIN 4102 |
| UV Resistance | Excellent (UV stabilized) |
| Operating Temperature | -30°C to +70°C |
Applications of Tensile Architecture Fabric
- Stadium and arena roofing systems
- Airport terminals and transportation hubs
- Commercial canopies and shopping centers
- Outdoor exhibition and event structures
- Public spaces, plazas, and walkways
- Cultural and landmark architecture
DERFLEX tensile architecture fabrics are engineered to meet the demands of both permanent and semi-permanent architectural structures, providing reliable performance in diverse climates worldwide.
Why Choose DERFLEX as Your Tensile Architecture Fabric Supplier?
Manufacturing Expertise
DERFLEX operates advanced coating and laminating production lines, ensuring strict quality control from raw materials to finished tensile membrane fabrics.
Global Project Experience
Our fabrics have been supplied to projects across Europe, North America, the Middle East, Southeast Asia, and Australia, meeting international standards and project-specific requirements.
Customization Capability
- Custom colors and surface finishes
- Tailored fabric weights and strengths
- Special fire retardant or anti-fungal treatments
Compliance & Certification
DERFLEX tensile architecture fabrics comply with major international standards, including ISO, EN, DIN, NFPA, and ASTM requirements.
Quality Control & Testing
Each batch of tensile architecture fabric undergoes comprehensive testing, including tensile strength, tear resistance, adhesion, fire performance, and weather aging tests to ensure consistent quality and long-term reliability.
Frequently Asked Questions (FAQ)
What is the lifespan of tensile architecture fabric?
Depending on the material type, service life ranges from 10 years for PVC coated fabric to over 30 years for PTFE membranes.
Is tensile architecture fabric fire resistant?
Yes. DERFLEX fabrics meet international fire safety standards such as B1, M2, NFPA 701, and DIN 4102.
Can DERFLEX provide custom tensile fabric solutions?
Absolutely. We offer customized tensile architecture fabrics based on project requirements, including color, strength, coating type, and certifications.
Contact DERFLEX
Looking for a reliable tensile architecture fabric manufacturer? Contact DERFLEX today to discuss your project requirements and receive professional technical support.
