Name: Roll-Off Truck Tarps
Brand: DERFLEX

Quick Answer

What is a roll-off truck tarp?

A roll-off truck tarp is a retractable or fitted cover used to contain loose loads on trucks carrying detachable roll-off containers. The tarp works as part of a covering system—such as a roller, gantry, arm, cable, pull bar or manual arrangement—and must match the real travel path, covered span and contact points.

A roll-off container tarp may refer to the same working cover or to a tarp that remains attached to the detachable container. For replacement purchasing, the important variables are not only container capacity but the actual finished tarp dimensions, material, pocket or bar geometry, attachment layout, highest load profile and known wear zones.

Buyer-Focused Product Definition

Roll-Off Truck Tarp vs. Roll-Off Container Tarp

The terms overlap in real procurement, but the operating context changes what must be measured and reinforced.

01

Truck-Mounted Retractable Cover

The tarp deploys from hardware mounted to the truck or hoist. Material must roll, flex and clear arms, gantries, container edges and the load profile without binding.

02

Container-Mounted / Fitted Cover

The tarp may remain with a detachable container and use bars, straps, hooks, bungees, grommets or a side-roll arrangement. Attachment geometry becomes part of the replacement specification.

03

Replacement Tarp Program

For fleets and distributors, the best purchasing unit is a controlled drawing or approved sample—not a vague description such as “20-yard tarp” or “heavy duty tarp.”

Material Selection

Mesh or Solid PVC: Choose by Waste Stream and Cover System

Material choice affects airflow, handling weight, water shedding, roll behavior and wear. “Heavier” is not automatically “better” if the tarp becomes too difficult for the mechanism to deploy correctly.

Breathable Containment

PVC-Coated Mesh Roll-Off Tarps

Practical for dry debris, green waste, branches and many recycling loads.
Allows airflow and can reduce sail effect compared with a fully closed surface.
Usually easier for frequent opening and closing where lower handling weight matters.
Not waterproof; do not specify mesh where full rain shielding is required.

Closed-Surface Coverage

Solid PVC-Coated Polyester Tarps

Useful when the load needs a closed surface against rain, road spray or fine material escape.
Supports welded or sewn fabrication, reinforced hems, pockets and branded finished covers.
Heavier than mesh, so system capacity, roller behavior and driver handling should be confirmed.
Water protection of the installed system still depends on seams, openings, overlap and attachment details.

Application	Material Direction	Why	What to Confirm Before Ordering
Green waste / branches	Coated mesh	Airflow and lower handling weight can be useful for bulky dry loads.	Peak load height, snag points, arm clearance and edge abrasion.
Cardboard / light recyclables	Coated mesh or project-specific structure	Containment with airflow may be preferred.	Mesh openness, side coverage, route wind exposure and attachment pattern.
Fine material / wet material	Solid PVC-coated polyester	Closed-surface coverage provides stronger shielding from rain and road spray.	Seam construction, overlap, drain behavior and full installed-cover geometry.
Mixed C&D debris	Reinforced mesh or solid PVC depending exposure	Irregular loads create abrasion and snagging that often damage pockets and edges first.	Historical tear zones, sharp contact areas, webbing and patch layout.
High-cycle fleet route	System-matched replacement tarp	Repeated deployment concentrates fatigue at roller pockets, hems and attachments.	Cycles per shift, existing sample, drive direction and approved repeat drawing.
Dealer / distributor program	Documented size and system family	Repeatability matters more than a generic “heavy duty” label.	SKU, revision control, label, color, packing and reorder tolerances.

Heavy duty truck tarp with reinforced webbing and tie-down points for transport cover applications — Truck tarp fabrication details illustrate why edge reinforcement and attachment geometry can matter as much as the center fabric.

Replacement Engineering

Measure the Tarp System, Not Only the Container

Nominal container volume does not define the tarp travel path. Two containers of similar yardage can require different finished covers because the gantry height, roller location, pull-bar design, side-wall profile, peak load and attachment method differ.

For a replacement tarp, record:

Finished tarp width and deployed length.
Roller pocket, spline, tube or pull-bar geometry.
Side flap / drop, front and rear overlap, and attachment details.
Grommet, strap, hook, webbing or rope positions.
Clearance around arms, gantry, tailgate, container rails and peak loads.
Current tarp failure points—tears, edge abrasion, pocket fatigue or pulled hardware.

Best practice: send photos with the old tarp fully open and fully retracted, plus a marked drawing or the worn sample when possible.

How to Measure a Replacement

Six Inputs That Reduce Rework Before Production

1Identify the systemTruck-mounted or container-mounted; arm, gantry, roller, side-roll, pull-style or manual cover.

2Measure the covered spanUse the actual working width and deployment length, not only nominal container dimensions.

3Document pockets and barsProvide the pocket flat dimension, attachment method and photos of the tube / pull bar interface.

4Map reinforcementMark edge webbing, wear strips, grommet rows, patches and any zones that repeatedly rub on the container.

5Record operating clearanceConfirm arms, gantry, hooks, tailgate, container corners and the highest normal load profile.

6Freeze the approved versionFor repeat orders, assign a drawing revision or approved sample so future shipments reproduce the same geometry.

Failure Analysis

Why Roll-Off Tarps Fail Early

Premature failure often starts in localized mechanical zones rather than in the middle of the fabric.

Roller Pocket Tears

Commonly linked to concentrated pull load, incorrect pocket geometry, insufficient reinforcement or repeated flexing at the same line.

Edge Abrasion

Container rails and sharp debris can rub through an otherwise serviceable cover. Local wear strips or revised travel clearance may be more useful than simply increasing overall fabric weight.

Grommet Pull-Out

Hardware can fail when load is concentrated into too small an area. Webbing-backed reinforcement and correct spacing should be considered as one system.

Snagging on Peaked Loads

An overfilled or irregular load can create a high point that catches the tarp. Confirm the normal load profile and deployment path before fixing a replacement size.

Hard Rolling / Poor Retraction

A replacement cover may fit the container but still be too stiff, heavy or incorrectly pocketed for the existing roller or arm system.

Wind Lift and Flapping

Material choice, side coverage and attachment layout influence stability. Mesh can be useful when airflow matters; solid covers require suitable securing and overlap.

Procurement Specification

Roll-Off Truck Tarp Specification Framework

Use this table as an RFQ structure. Final values should be confirmed against the truck, container, cover mechanism and project requirements.

Specification Item	What DERFLEX Can Discuss / Customize	Buyer Input Needed
Material	PVC-coated mesh, solid PVC-coated polyester or application-specific structure.	Waste stream, weather exposure, airflow requirement and handling preference.
Finished size	Made to drawing, approved sample or verified field dimensions.	Actual finished width, deployment length, flap / drop and overlap.
Pocket / bar interface	Roller pocket, pull-bar pocket, sleeve, spline or custom attachment detail.	Photos, dimensions and hardware / tube geometry.
Edge design	Hems, webbing, rope edge, reinforcement patches and local wear strips.	Known contact points and recurring failure history.
Attachment	Grommets, straps, loops, webbing, hooks or project-specific fastening layout.	Spacing, orientation and system interface.
Color / branding	Project colors, logo marking, size labels, SKU labels and private-label packaging can be discussed.	Artwork, color target, label text and packing plan.
Supply mode	Finished replacement tarps, cut panels, semi-finished parts or roll goods depending project.	Your fabrication capability and preferred order format.
Quality documentation	Inspection and project-specific documentation requirements can be reviewed before order confirmation.	Required test method, acceptance criteria and destination-market requirements.

Buyer Checklist

What to Send for an Accurate Roll-Off Tarp Quote

A complete RFQ helps separate real system requirements from assumptions based on a truck model name or container yardage.

Geometry

Finished width and length, side drop, front/rear overlap, pocket dimensions, grommet or strap positions.

System Photos

Truck / hoist, tarp fully deployed, tarp fully retracted, roller / gantry / arm details and attachment points.

Waste Stream

Refuse, recycling, green waste, scrap, C&D debris, fine material, wet load or other operating condition.

Failure History

Where the old cover tears, rubs, pulls out, snags or rolls poorly—and how often it is deployed.

Commercial Requirements

Quantity, size mix, repeat-order forecast, private label, packing method and destination market.

Acceptance Requirements

Any drawing revision, approved sample, dimensional tolerance, inspection method or required project documentation.

Custom Manufacturing

Built for Fleets, Dealers, System Builders and Replacement Channels

DERFLEX can support the tarp and coated-fabric side of a roll-off covering program, from material selection to repeatable finished replacement covers.

Fleet Replacement Programs

Standardize recurring sizes, approved materials, reinforcement layouts and labels so maintenance teams can reorder with less measurement risk.

Waste-Equipment Distributors

Build a controlled range by system family, finished size and material direction rather than relying only on generic tarp dimensions.

Tarp-System / Body OEMs

Discuss roll goods, cut panels or finished tarps that match the mechanical cover path and the brand’s packaging requirements.

Image & Application Gallery

Truck Tarp Construction and Hauling Context

Real product and transport images help procurement teams understand the relationship between tarp material, reinforcement and the actual hauling environment.

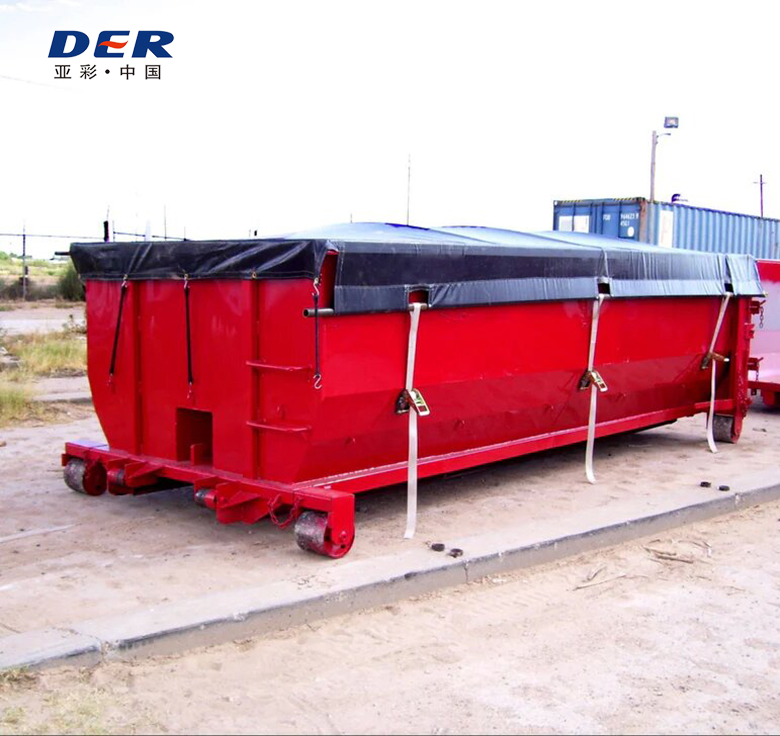

Roll-off truck tarp replacement cover for roll-off container and waste hauling applications — Roll-off tarp replacement cover. Finished geometry should be based on the specific cover system and container.

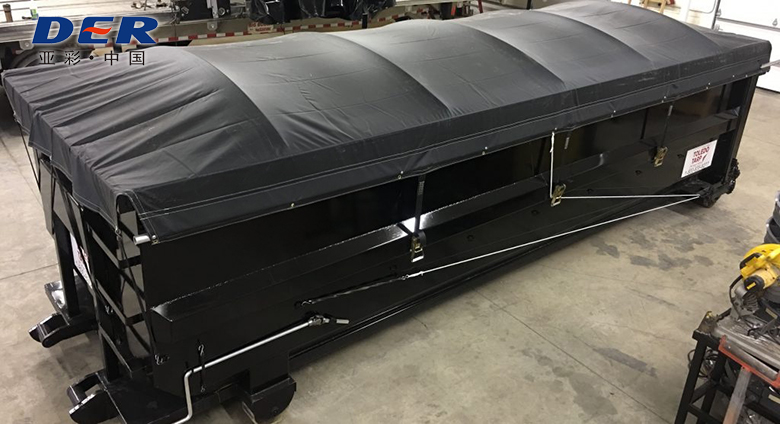

Heavy duty PVC truck tarp for outdoor transport and weather protection — Solid PVC truck tarp construction for closed-surface weather protection.

PVC coated truck tarpaulin used on commercial transport equipment — PVC-coated truck tarpaulin application illustrating commercial transport use.

Related DERFLEX Resources

Continue Through the Truck-Tarp Topic Cluster

These related pages cover the parent truck-tarp category, deployment systems, supplier sourcing, waste applications and material alternatives.

Truck Tarp ManufacturerCore category for heavy-duty truck tarp materials, custom covers and OEM supply. Truck Tarp SystemsMaterial and cover considerations for different tarp deployment mechanisms. Heavy-Duty Roll-Off Tarp SupplierBulk, supplier and OEM sourcing direction for roll-off tarp programs. Dumpster TarpsHeavy-duty covers for roll-off dumpsters, debris transport and industrial waste hauling. Tarp for Waste TransportApplication guidance for refuse, recycling and industrial waste movement. Truck Mesh TarpaulinsBreathable coated mesh material for loose-load containment and airflow.

Roll-Off Truck Tarp FAQ

What material is best for a roll-off truck tarp?

There is no single best material for every route. PVC-coated mesh is often suitable when airflow and lower handling weight are priorities. Solid PVC-coated polyester is more appropriate when a closed weather barrier is needed. The final choice should be matched to the waste stream, cover mechanism, handling frequency and abrasion points.

Is a roll-off container tarp waterproof?

A solid PVC-coated tarp can provide a waterproof sheet surface. The complete installed cover may still have openings, seams, overlaps or hardware penetrations that affect water protection. Mesh roll-off tarps are breathable and should not be described as waterproof.

How do I measure a replacement roll-off tarp?

Record the actual finished width and deployment length, pocket or bar geometry, flap / drop dimensions, attachment layout, hardware clearances and known wear zones. Photos of the existing tarp fully open and fully retracted are highly useful. Do not rely only on container yardage.

Can DERFLEX supply replacement tarps for automatic roll-off tarp systems?

DERFLEX can discuss finished replacement covers and material structures for roll-off systems when the buyer provides the system geometry, dimensions, pocket details, attachment layout and operating requirements. Final compatibility should be confirmed against the actual mechanism.

What is the difference between a roll-off tarp and a dump truck tarp?

Both contain or protect loose loads, but roll-off truck tarps typically work around detachable containers and a roll-off / hook-lift cover path. Dump truck tarps are built around a fixed dump body or trailer geometry. The material can overlap, while the dimensions, pockets, arms and attachment details often differ.

What should I send DERFLEX for a custom quotation?

Send the truck and container type, finished tarp dimensions, system photos, material preference, pocket / pull-bar details, reinforcement requirements, cargo or waste stream, current failure points, quantity, color / branding needs, packaging requirements and destination market.

Turn a Worn Tarp into a Repeatable Replacement Specification

Send DERFLEX the old tarp, a marked drawing or field measurements together with photos of the system. We can review material direction, wear reinforcement, finished geometry and repeat-order requirements for your roll-off truck tarp program.

Request a Custom Quote Review Truck Tarp Systems

Include these 7 items in your inquiry 1) system type · 2) finished size · 3) pocket / bar detail · 4) material preference · 5) waste stream · 6) failure zones · 7) quantity / destination
