Custom canopies · Marquees · Shelters
Plan a complete tent order around the structure, cover and accessories. Explore five tent categories with DERFLEX, then define the footprint, wall layout, operating conditions and supply scope for your project or wholesale program.
Five project categories for inquiry. Catalog models, dimensions and included hardware are confirmed in writing for each order.
01 / Start with the operating model
A portable race-day canopy, a sliding industrial shelter and a resort tent need different structures and handover documents. Select a category above to review its critical interfaces.
Portable shade for events, promotions and race support.
Specify the scissor frame, legs, locking method, clear height and packed dimensions. Confirm frame material and transport handling for the exact model.
Match the roof pattern, corner pockets and sidewall connections to the selected frame. Define printed areas, door positions and any connecting gutters.
Frame assembly, roof, selected wall panels, fixing straps, specified anchoring components and carry bag. Confirm each item and quantity.
Approve an assembled sample or verified fit check, artwork placement, wall layout and packing list. Confirm operating limits and replacement-part references.
Air-supported deployment for temporary events and shelter projects.
Identify whether the system uses sealed air beams or continuous airflow. Specify inflation requirements, operating pressure basis, monitoring and recovery procedures.
Confirm the air-retaining construction, seams, air-beam / cover interface, removable wall panels, doors and any service penetrations.
Air-beam structure, roof / walls, specified valves and fittings, anchoring parts and the agreed pump or blower package. Verify electrical supply where applicable.
Agree the inflation and leak-check procedure, pressure-management instructions, repair provisions and the safe deployment method for the proposed model.
Sliding or concertina coverage where access and storage space matter.
Specify the supporting frame, wheel / track system, travel distance, opening direction, locking points and fully stacked dimensions.
Review repeated folding, track abrasion, seam positions, edge reinforcement, drainage and fabric clearance throughout the travel path.
Frame modules, cover sections, wheels, guides / tracks, locks, end connections and anchoring / track fixings as agreed. Identify moving-part spares.
Approve the open and stacked layouts, travel clearance, manual or powered operating method, drainage route and site fixing responsibilities.
Exhibitions, hospitality, event rental and race-village shelter layouts.
Define the modular bay arrangement, clear span and height, frame sections, bracing, connections and site-specific anchoring basis.
Specify roof opacity, wall panels, door openings, windows, branding areas and connections between adjacent structures.
Primary frame, bracing, roof and walls, doors, fittings, tensioning parts, agreed anchors and any separately priced gutters, floor or interior options.
Approve the layout and pedestrian / equipment access. Confirm structural documentation, applicable material reports, assembly instructions and inspection scope.
Tented resort and lodge projects with an explicitly defined fit-out boundary.
Define the structural support, platform interfaces, entrances, roof geometry and site exposure. Separate the shelter structure from civil works.
Schedule the outer weather skin, inner lining, shading / blackout layers and any insulation separately. Plan ventilation, condensation management and maintenance access.
Agreed frame, roof / envelope panels, inner liner, door / window interfaces, fittings and anchoring connections. List decks, bathrooms, utilities and furniture separately.
Approve the model, material board, envelope details, platform drawing, installation boundary and operating / maintenance requirements before confirming an order.
The category notes are a specification guide, not a declaration of standard stock or a pre-approved structural design. For the inflatable route, see the existing inflatable shelter overview.
02 / The package, item by item
A complete bill of materials identifies every supplied component against an approved model and drawing. Use the schedule below to agree inclusions, quantities and the responsibility for each interface.
| BOM group | Components to identify | Written confirmation required |
|---|---|---|
| 01 · Primary structure | Legs, rafters, purlins, scissor members, arches or air beams, as applicable. | Model, drawings, material / section, finish and component quantities. |
| 02 · Roof & envelope | Roof sheets, sidewalls, end walls, doors, windows and any specified inner lining. | Panel schedule, fabric grade, color, dimensions and attachment design. |
| 03 · Joints & fasteners | Connectors, brackets, plates, pins, bolts, locking devices and retaining parts. | Part numbers, compatible hardware, quantities and corrosion protection. |
| 04 · Tensioning | Ropes, straps, ratchets, lacing, keder or other model-specific cover connections. | Connection locations, fit, tensioning sequence and replacement references. |
| 05 · Ground interface | Base plates and the specified stakes, anchors, ballast connections or track fixings. | Ground conditions, anchoring design, included hardware and site responsibilities. |
| 06 · Water management | Specified gutters, joining strips, edge details and drainage outlets. | Roof geometry, panel joints, runoff route and maintenance access. |
| 07 · Moving / air system | For retractable designs: wheels, tracks, guides and locks. For inflatable designs: valves, air fittings and agreed inflation equipment. | Applicable system, operating method, compatible parts and safety instructions. |
| 08 · Options & spares | Any agreed spare panels, connectors, repair materials, bags, flooring or interior options. | Separate option list, quantities, compatibility and price inclusion. |
| 09 · Packing & labels | Frame bundles, panel bags, hardware packs and identified cartons or crates. | Package count, weights, dimensions, handling method and loading scope. |
| 10 · Handover documents | Assembly drawings, packing list, care instructions and agreed model / material evidence. | Document revision, operating limits, inspection schedule and required local review. |
“Complete kit” needs a defined boundary. Civil works, foundations, electrical services, HVAC, installation labor and permits need an explicit inclusion or exclusion.
Confirm the assembled system. Fabric strength or flame performance alone does not establish the wind resistance, snow capacity or compliance of a tent.
03 / Agree the supply model
Tell your tent supplier exactly what you expect to receive. Request an itemized response covering the physical products, documentation and services.
Submit the required tent type, footprint, use and destination. Ask for the proposed model, structure source, cover specification, included fittings and a complete packing schedule.
Confirm: model availability, frame responsibility, accessory list and assembly documents.For an existing structure, provide the frame drawing, actual connection details and panel dimensions. For local fabrication, specify the required roll material and processing requirements.
Confirm: material grade, finished-cover scope, pattern ownership and compatibility.For OEM tents or wholesale tents, define the model mix, artwork, repeat-order references, packaging and spare-part plan. Separate development work from recurring supply.
Confirm: samples, approved revisions, MOQ, production schedule and branding scope.04 / Plan around the use
Application images below come from existing DERFLEX pages. They illustrate the project context and do not establish a supplied model or a completed turnkey installation.

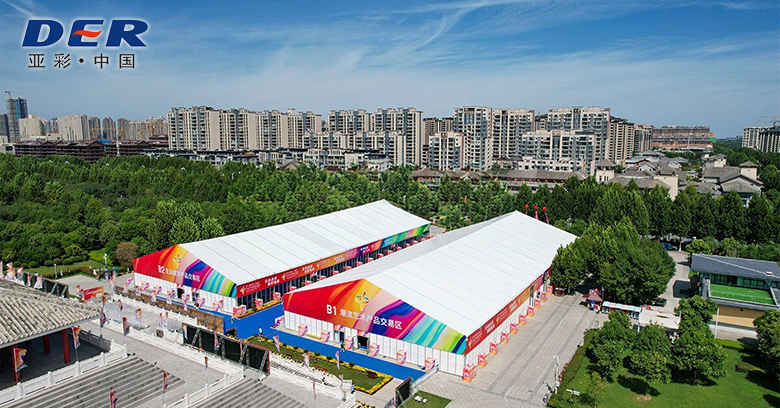

Plan door positions, branding, visitor access, repeated assembly and replacement wall panels. Explore exhibition tent applications.

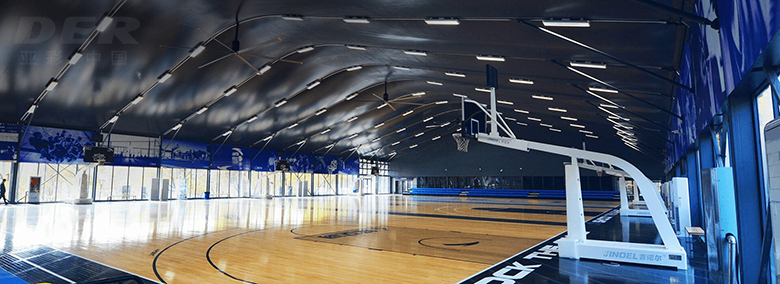

Distinguish a portable event canopy from a large sports structure. Clearances, ventilation and engineering scope differ. Review sports membrane requirements.

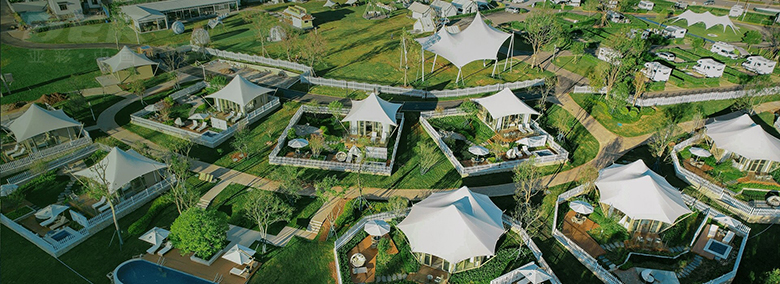

Define the outer skin, inner lining, privacy, ventilation and platform interfaces separately. Treat insulation, bathrooms and utilities as explicit project packages.
05 / Review before you order
Use a fit check, an agreed BOM and relevant evidence to move from a general product description to an order that can be checked at delivery.
DERFLEX’s published materials work includes PVC-coated tent fabrics, blockout constructions and customized material specifications. Discuss the cover alongside the supporting structure.
Compare tent fabric options ↗Check footprint, clear entry height, panel dimensions, frame interfaces, wall fastening and door operation. A nominal footprint alone is insufficient for replacement covers.
Repeated folding, sliding contact, light transmission, seam placement and cleaning affect fabric selection. See event tent cover material considerations before approving a grade.
Request reports that identify the exact proposed product and test method. Agree who provides structural calculations, anchoring review and local approvals for the selected site.
Define the sample or assembly-check scope, panel identification, hardware count and packing evidence. Review the published DERFLEX quality control process and agree project-specific inspection points.
06 / Make the inquiry specific
Start with the tent category and scope. Add the site conditions, dimensions and drawings so the response can identify a suitable model and the remaining approval steps.
Price, MOQ, sample timing, production lead time and freight depend on the confirmed specification and order mix. Request these as separate lines in the quotation.
Go to DERFLEX’s official quote page ↗Before you place an order
A complete tent package should identify the supporting structure or air-beam system, roof and wall panels, compatible connectors and tensioning parts, the agreed anchoring hardware, packing and assembly documents. Flooring, electrical equipment, HVAC, foundations and site installation must be listed separately. Final quantities and inclusions belong in the model-specific bill of materials.
State the required supply mode at the start of your inquiry. DERFLEX publishes tent-fabric and custom material capabilities. Complete-kit availability, frame sourcing, cover fabrication and accessory supply require confirmation for the selected model. A fabric quotation alone does not define a complete tent package.
Compare the same footprint, clear height, structure specification, roof and wall construction, anchoring basis and included accessories. Request a dated drawing, itemized BOM, packing list and exclusions. Confirm whether engineering documents, freight, taxes and installation are included before comparing totals.
Submit artwork, color references, print areas, model quantities and packaging requirements. Ask DERFLEX to confirm the compatible fabric and printing route, sample approval process and repeat-order identification. OEM scope, minimum order quantity and production schedule are confirmed after the specification review.
No. A fabric test report describes the tested material and method. It does not establish structural wind or snow performance, anchoring adequacy, fire approval for the entire installation or local permit compliance. Request documents for the exact material and structure proposed for your site.
Provide the tent category, intended use, location, footprint and clear height, quantity, deployment frequency, wall and door layout, ground conditions, destination and required delivery date. Add drawings, photographs, local compliance requirements and a clear choice of complete kit, covers or materials.
Send the use, dimensions, quantity and destination. Ask for the model, itemized BOM and supply boundary.
