Abrasion Resistant Truck Side Curtain Fabric Manufacturer

Q: Can the PVC side curtain fabric be printed and welded?

Suitable constructions can support welding, sewing and fleet graphics. The actual process should be validated with the selected ink, equipment and production settings.

Designed around real failure points

A Side Curtain Is a Moving Component, Not a Static Cover

A curtain-side trailer fabric moves every working day. It slides along the top rail, folds around rollers, pulls against buckles, flexes around vertical posts and vibrates at road speed. The material may also touch pallet corners, load restraints and uneven cargo surfaces. These repeated contacts create localized wear long before the whole curtain looks old.

Standard PVC tarpaulin can be waterproof and strong on a specification sheet yet still lose coating at high-friction points. Once the outer coating is polished or scratched away, the polyester scrim becomes easier to expose. That weak spot can develop into a pinhole, a tear start point, a leak or a visible defect in printed fleet graphics.

DERFLEX approaches abrasion resistant truck side curtain fabric as a service-life engineering problem. The goal is not simply to add more weight. It is to combine suitable scrim, coating thickness, surface formulation, flexibility and fabrication details for the truck's operating pattern.

650gsm and 900gsm abrasion resistant PVC truck side curtain fabric — Product display: PVC coated polyester truck side curtain fabric for trailer manufacturing, replacement curtains and fleet programs.

Repeated ContactRails, straps, buckles, poles or cargo edges rub the same area.

Surface ScuffingThe lacquer or PVC top layer starts to polish, scratch or thin.

Coating LossLocalized wear reduces the protective layer over the scrim.

Weak PointPinholes, exposed yarn or a tear initiation point can form.

Operational CostRepair, water entry, image damage or early curtain replacement follows.

Material architecture

How the PVC Curtain Tarpaulin Is Built

Reliable performance comes from the interaction between the woven reinforcement and the coating system. Each layer affects abrasion behavior, dimensional stability, welding, printing and handling.

Wear-Resistant Surface FinishOptional lacquer or application-specific surface treatment for road dirt, cleaning and print protection.

Outer PVC CoatingWeather barrier and the first contact layer against rubbing, folding and impact.

High-Tenacity Polyester ScrimLoad-bearing woven reinforcement selected for tensile strength, tear resistance and dimensional control.

Inner PVC CoatingProtects the reverse side and supports welding, cleaning and moisture resistance.

Application FinishGloss, matte, printable, anti-mildew, cold-resistant or flame-retardant options according to project requirements.

Why coating formulation matters

Abrasion performance depends on more than GSM. A very hard surface may resist scratching but become less flexible during folding or cold-weather operation. A very soft surface may handle well but mark more easily under hardware contact. The formulation must balance wear resistance, flex life and fabrication behavior.

Why the scrim matters

The polyester base carries curtain tension and helps stop a local coating defect from becoming a larger tear. Yarn denier, thread density and weave construction can be matched to the trailer body, finished curtain weight and expected route conditions.

Why finishing matters

Printed fleet curtains require a clean, compatible surface. Replacement curtains may prioritize color matching and welding consistency. Long-haul curtains may require additional UV, cold or mildew resistance. DERFLEX can coordinate these variables in one material specification rather than treating them as unrelated options.

Material selection

650gsm or 900gsm: Choose by Duty Cycle, Not Weight Alone

Both grades can be made for truck side curtain applications. The right choice depends on curtain size, opening frequency, route, hardware design, cargo contact and the customer's handling priorities.

Balanced handling and durability

650gsm PVC Curtain Tarpaulin

A practical option for standard curtain-side trailers where operators need abrasion resistance without unnecessarily increasing curtain weight. It is well suited to frequent opening, local fabrication and branded fleet curtains when the trailer hardware and wear zones are properly designed.

Easier manual handling during opening and closing
Suitable for many regional and general logistics routes
Good balance of flexibility, welding and printability
Useful for OEM roll supply and replacement curtain programs
Can be combined with local reinforcement at high-contact areas

Higher material reserve

900gsm PVC Curtain Tarpaulin

A heavier-duty construction for larger curtains, demanding routes, higher mechanical stress or applications where additional coating and fabric mass are preferred. It can provide more material reserve, but the complete curtain system must still avoid sharp hardware and poor tensioning.

Designed for demanding curtain systems and long-haul use
Higher finished weight and robust handling feel
Suitable where frequent friction or load contact is expected
Supports reinforced hems, straps and hardware zones
Available with project-specific surface and performance options

Selection Point	650gsm Grade	900gsm Grade	Procurement Note
Typical Positioning	Balanced-duty side curtain material	Heavy-duty side curtain material	Confirm actual finished weight tolerance in the approved data sheet.
Handling	Lower curtain mass may support easier manual operation	Heavier feel with more material reserve	Evaluate full curtain size, rail condition and operator workflow.
Recommended Use Review	Regional logistics, standard trailers, branded curtains	Long-haul, larger curtains, demanding wear conditions	These are selection directions, not fixed limits.
Fabrication	Welding, sewing, printing and local reinforcement	Welding, sewing, printing and heavier reinforcement systems	Run welding and printing trials before mass production.
Best Decision Basis	Wear map + duty cycle + trailer hardware + climate + target handling + approved test data		A sample and pilot curtain are more useful than choosing by GSM alone.

Custom manufacturing framework

Specification Options for Trailer OEMs and Curtain Fabricators

Final values are confirmed against the selected grade, test method and purchase specification. The table below shows the variables that can be coordinated for a project.

Product	Abrasion resistant truck side curtain fabric / anti-wear PVC curtain tarpaulin
Construction	Woven high-tenacity polyester reinforcement with PVC coating on both sides
Nominal Weight Options	650gsm and 900gsm; other constructions can be reviewed for project requirements
Surface	Gloss, semi-gloss or matte; printable and lacquered options subject to ink/process compatibility
Performance Options	Abrasion-resistant formulation, UV resistance, mildew resistance, cold flexibility, flame-retardant formulation and other project-specific treatments
Color	Standard colors or custom color development based on approved sample or color reference
Supply Form	Roll goods, cut panels or project-based finished curtain support
Fabrication Compatibility	Hot-air or high-frequency welding, sewing, hemming, webbing, straps, buckles, eyelets and printed fleet graphics after process validation
Target Buyers	Trailer manufacturers, truck body builders, curtain fabricators, fleet operators, distributors and replacement curtain suppliers
Quality Documentation	Approved sample, specification sheet, relevant test records and batch inspection arrangements according to order agreement

Product data should be tied to the agreed test method and approved batch specification. Color, hand feel, welding window, print compatibility and performance options should be verified on samples before production. Actual curtain life varies with trailer design, installation, load contact, route, climate, cleaning and maintenance.

Controlled abrasion demonstration

Evidence Should Be Described with Its Test Conditions

DERFLEX uses an internal fabric-to-metal friction demonstration to compare coating wear under controlled conditions. The result supports material evaluation, but it is not presented as a universal service-life guarantee.

3,000 laboratory abrasion rotations

No visible wear under the stated internal test condition

The demonstration simulates repeated contact between the PVC coated fabric and a metal rod. The anti-wear formulation is evaluated after 3,000 rotations for visible surface damage. This provides a practical comparison tool when reviewing conventional and abrasion-resistant formulations.

A responsible buying decision should also consider tensile strength, tear resistance, coating adhesion, flex behavior, welding performance, UV aging and the actual wear map of the trailer. For a new program, DERFLEX recommends an approved sample and, where appropriate, a pilot curtain before volume production.

Important: internal abrasion results apply to the specific sample and controlled test setup. Road performance depends on curtain tension, hardware geometry, cargo contact, driving conditions, maintenance and environmental exposure.

Manufacturing and batch control

From Formulation Approval to Roll Inspection

Repeatable supply is especially important for trailer builders and fleet replacement programs. The control plan should follow the agreed specification rather than relying on a product name alone.

Requirement Review

Confirm trailer size, curtain design, climate, route, printing method, wear zones and target supply form.

Sample Approval

Approve color, surface, hand feel, nominal construction, welding behavior and relevant test expectations.

Production Controls

Monitor base fabric, coating, finished weight, width, appearance, color and roll consistency according to the order plan.

Final Inspection

Review roll surface, dimensions, packing, traceability and agreed physical performance before shipment.

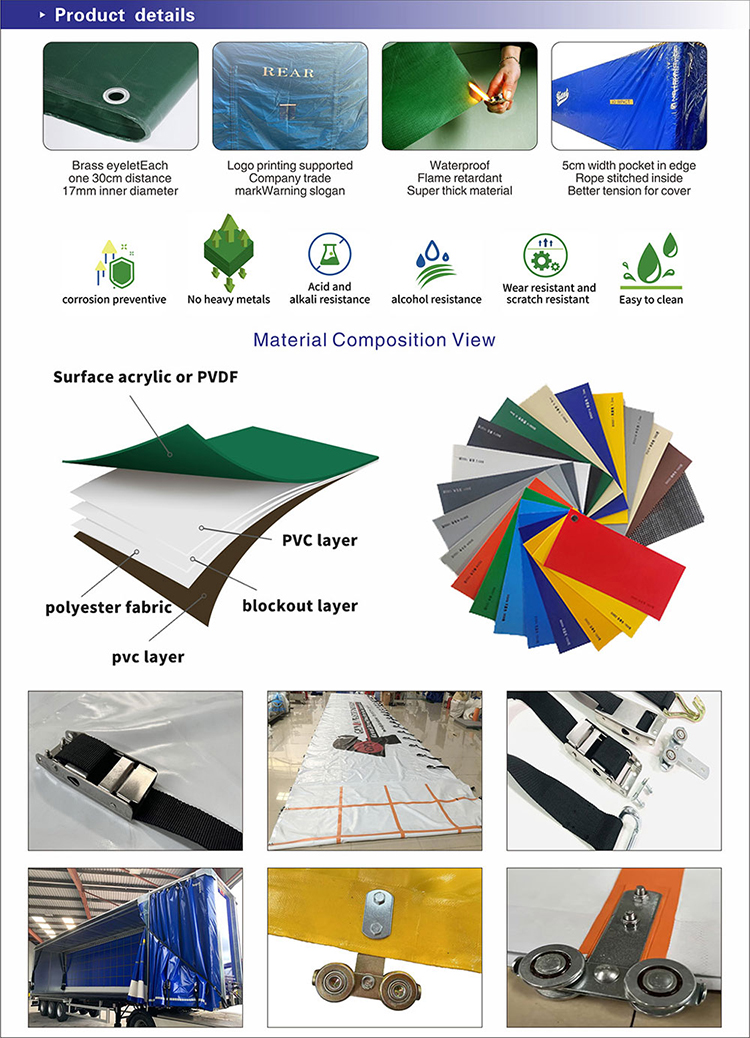

PVC coated polyester curtain side trailer fabric for OEM manufacturing — Custom options can cover roll width, color, surface finish, printable face, packing and project-specific performance requirements.

Finished curtain engineering

Good Fabric Performs Better When the Curtain Is Designed Around Wear

Material selection and finished-curtain design should be handled together. A heavy fabric cannot compensate for a sharp metal edge, misaligned roller, loose buckle or chronic over-tension. Conversely, a well-designed wear zone can help a balanced-weight curtain perform reliably.

Recommended design review points

Map metal-to-fabric contact before defining reinforcement strips.
Round, cover or isolate sharp hardware and cargo contact points.
Use compatible reinforcement at buckles, hems, straps and pole pockets.
Validate welding temperature, speed and pressure on production equipment.
Keep curtain tension sufficient for control without unnecessary stress.
Specify repair materials and procedures for fleet maintenance teams.

Buyer and application fit

Built for Commercial Transport Supply Chains

The material can support new-build curtain systems, replacement programs and local conversion when the construction is matched to the operating requirement.

Trailer Manufacturers

Stable roll specifications, weldability and color continuity for curtain-side trailer production.

Truck Body Builders

Material selection coordinated with rails, posts, buckles, hems and finished curtain dimensions.

Curtain Fabricators

Roll goods or cut panels for welding, sewing, reinforcement and replacement curtain manufacturing.

Fleet Operators

Replacement programs focused on abrasion points, brand appearance and maintenance practicality.

Logistics Distributors

Private-label supply, standard color programs and specification support for regional markets.

Printed Fleet Branding

Printable curtain surfaces for logos and graphics after confirming the ink and printing process.

Procurement guide

Eight Questions to Ask Before Buying Truck Side Curtain Fabric

A useful quotation compares test conditions, processing behavior and supply controls—not only GSM and unit price.

01

Where does the curtain wear?

Share photos or a wear map showing rails, poles, buckles, cargo contact and damaged areas.

02

Which test method applies?

Ask how abrasion, tensile, tear, adhesion, aging and cold-flex results are measured and reported.

03

What does 650 or 900gsm include?

Confirm nominal finished weight, tolerance, scrim construction and coating arrangement.

04

Will it weld on your equipment?

Request trial material and validate the welding window, seam appearance and peel behavior.

05

Is the surface print-compatible?

Specify digital, screen or other printing processes and approve ink adhesion before production.

06

How will color be controlled?

Use an approved physical sample or agreed color reference with an acceptance method.

07

What batch records are available?

Define inspection items, traceability, roll identification and documentation in the purchase order.

08

How will the product be packed?

Confirm core, roll length, protecti, ve wrapping, labels, pallet method and container loading needs.

Related DERFLEX resources

Continue Your Truck Curtain Material Evaluation

Use these related pages to compare curtain systems, truck tarpaulin structures and transport-cover options.

Truck Side Curtain TarpsOEM and custom curtain-side trailer tarp solutions for logistics fleets and body builders. Truck Side Curtain TarpaulinMaterial definition, specifications and procurement considerations for curtain-side systems. Truck Side Curtain FabricGeneral heavy-duty PVC curtain material options for trailer and transport applications. Truck Tarpaulin ManufacturerExplore truck tarp materials and custom cargo-cover configurations. PVC Tarpaulin for Truck CoversPVC coated polyester materials for covers, side curtains and transportation protection. Heavy Duty PVC Truck Cover FabricDurable coated tarpaulin for demanding truck cover and lorry curtain applications.

Frequently asked questions

Truck Side Curtain Fabric FAQ

What is abrasion resistant truck side curtain fabric?

It is a PVC coated polyester fabric developed for moving curtain-side trailer systems where the material repeatedly contacts rails, poles, buckles, straps, cargo edges and other hardware. The construction is selected to balance wear resistance, strength, flexibility, weather protection and fabrication.

Is 650gsm truck side curtain fabric suitable for daily fleet use?

650gsm can be a suitable balanced-duty option for many standard curtain-side trailers and regional logistics applications. Suitability depends on curtain dimensions, hardware, route, load contact, climate and fabrication details. A sample or pilot curtain is recommended for a new program.

When should a buyer consider 900gsm PVC curtain tarpaulin?

900gsm is generally considered when a heavier construction and additional material reserve are preferred for larger curtains, long-haul use or demanding mechanical conditions. It should still be paired with good hardware geometry, reinforcement and tension control.

Does higher GSM automatically mean better abrasion resistance?

No. GSM is only one factor. Surface formulation, coating distribution, scrim construction, flexibility, hardware contact and finished-curtain design all affect wear. Compare materials using agreed tests and real operating requirements.

Can the PVC side curtain fabric be printed and welded?

Yes, suitable constructions can support welding, sewing and fleet graphics. The actual printing and welding process should be validated with the selected ink, equipment and production settings before a mass order.

Can DERFLEX customize color, width and performance options?

DERFLEX can review custom color, roll dimensions, surface finish, printability, cold resistance, UV resistance, mildew resistance, flame-retardant requirements, packing and private-label needs. Final options are confirmed through an approved specification.

Send DERFLEX Your Curtain Wear Problem

Share the trailer type, curtain dimensions, current GSM, damaged areas, route conditions and fabrication method. DERFLEX can review whether a 650gsm or 900gsm abrasion resistant PVC curtain tarpaulin is the more appropriate starting point.

Trailer and curtain dimensions
Photos of wear or small-hole locations
Current fabric specification
Required color, width and print process
Estimated order quantity and destination

Request a Quote
