Heavy Duty Tarpaulin – Ultimate Protection for Industrial & Outdoor Use

Overview — What is a Heavy Duty Tarpaulin?

A heavy duty tarpaulin (heavy-duty tarp) is a robust sheet material made from a high-strength base fabric (typically polyester) that has been coated or laminated with polyvinyl chloride (PVC) or polyethylene (PE) to deliver waterproofing, UV stability and abrasion resistance. Compared with lightweight poly tarps, heavy duty tarps are engineered for repeated industrial use: they resist tearing, stand up to long-distance transport, and meet safety standards such as flame retardancy when required.

DERFLEX manufactures a broad range of heavy duty tarpaulins (500–1200gsm) that are widely used in trucking & logistics, construction, agriculture, marine, emergency shelters and event infrastructure. These tarps protect cargo, equipment and structures from rain, dust, UV radiation and mechanical damage.

Why Choose DERFLEX Heavy Duty Tarpaulin?

Industrial strength: High-tenacity polyester base woven fabric for superior tensile and tear resistance.
Complete waterproofing: Knife-coated or calendared PVC surface provides 100% waterproof performance.
UV & weather stability: UV inhibitors and stabilizers minimize fading and polymer breakdown under prolonged sun exposure.
Optional fire-safety: Flame-retardant grades available (B1 / M2 / NFPA 701) for public spaces and regulated industries.
Customizable: Weight (gsm), thickness, colors, coatings and printed branding to match project requirements.
Ease of fabrication: Excellent weldability and compatibility with high-frequency welding for strong, leak-free seams.

Tip: for long-haul trucking, choose 650–900gsm PVC tarpaulin with reinforced edges and corrosion-resistant eyelets for the best balance of protection and handling.

Technical Specifications (Typical Options)

Characteristic	Typical DERFLEX Specification
Base fabric	High-tenacity polyester 1000D / 1000D or 1000D x 2000D
Coating	Single or double-sided PVC (knife-coated or calendared)
Weight range	500gsm, 650gsm, 900gsm, 1050gsm, 1200gsm
Thickness	0.40mm – 1.30mm (depending on gsm)
Width	1.02m – 3.20m (up to 5.10m welding/assembly available)
Tensile strength (warp/weft)	≥ 1500–3000 N
Tear strength	≥ 150–600 N (varies by grade)
Temperature range	-30°C to +70°C
Surface finishing	Glossy, matte, PVDF lacquer, anti-mildew, anti-static
Certifications / compliance	REACH, RoHS, optional fire standards (EN, NFPA), UV-stability tests

Primary Applications & Use Cases

DERFLEX heavy duty tarpaulins are engineered for sectors that demand reliable protection:

Trucking & Logistics: Flatbed covers, side-curtain tarps, container liners — protect goods from weather and theft exposure.
Construction: Scaffolding covers, material storage covers, temporary roofs and dust containment barriers.
Agriculture: Hay, silage and grain covers; greenhouse overlays and pond liners.
Marine & Offshore: Boat covers, dock curtains and equipment protection on open decks.
Events & Exhibition: Stage roofing, marquee canopies and printed promotional backdrops.
Emergency & Military: Field shelters, equipment covers and rapid-deploy protection in disaster relief.

Case example: fleets using DERFLEX 900gsm truck tarpaulins report fewer cargo weather claims and longer cover lifetime compared with alternative lightweight materials.

Choosing the Right Grade — a Practical Comparison

When selecting a heavy-duty tarpaulin you should balance weight, flexibility and cost:

500–650gsm — Good for medium-duty truck covers, temporary storage and general-purpose industrial protection.
900gsm — Recommended for most heavy-duty trucking, long-term outdoor storage and construction covers.
1050–1200gsm — Best for extreme-service (mining, offshore, heavy equipment), or where puncture resistance is critical.

Also consider finish: PVDF-lacquered surfaces offer superior self-cleaning and UV life for outdoor signage and permanent shelters, while matte finishes reduce glare for event use.

Fabrication & Customization

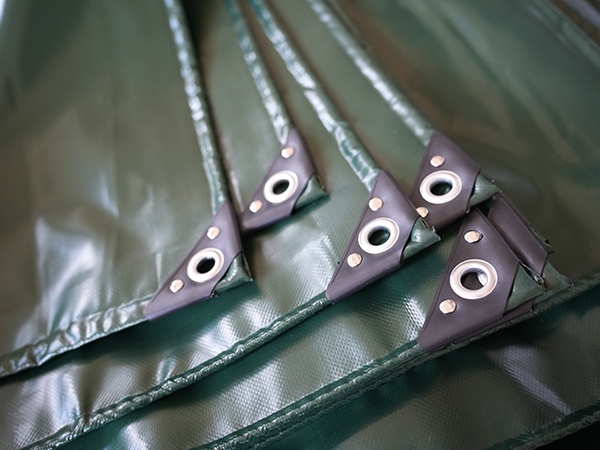

DERFLEX tarpaulins are produced to be easy to fabricate: they weld cleanly (hot-air, HF) and accept metal eyelets, webbings and reinforced hems. Typical customization options include:

Cut-to-size finished covers and roll goods
High-frequency welded seams and reinforced hems
Canvas-backed or anti-abrasion layers
Printed branding and full-color digital prints for promotional tarps
Color matching and special coatings (anti-static, anti-mildew)

Pro tip: order sample swatches and ask for tensile/tear test certificates before large orders.

Installation Precautions & Best Practices

Correct installation extends service life and prevents damage:

Secure Anchoring: Use appropriate straps, ratchets or bungee systems. Avoid point loads — use spreader bars or reinforcing fabrics at attachment points.
Protect Edges: Reinforce hem and eyelets; do not tie ropes directly through the tarp fabric without reinforcement.
Avoid Water Pools: Design the cover with a slope or drainage channels; standing water accelerates wear.
Minimize Abrasion: Keep the tarp clear of sharp edges and machinery; use skid pads or sacrificial layers where abrasion occurs.
Proper Storage: Clean and dry before folding; store in a ventilated, shaded area away from chemicals and direct sunlight when not in use.

Maintenance & Repair

Routine maintenance keeps heavy duty tarpaulins performing longer:

Wash with mild detergent and water; rinse thoroughly.
Inspect seams, eyelets and welds after each use; repair small tears with PVC repair kits or heat welding.
Replace corroded hardware and reinforce any high-stress areas.
For major damage, contact DERFLEX for authorized repair or replacement options.

Quality, Safety & Environmental Standards

DERFLEX manufactures to meet international standards and common buyer requirements:

RoHS / REACH compliance for chemical safety
ISO 9001 quality management systems in production
Fire-retardant grades with EN / NFPA / national approvals on request
UV stability and accelerated weathering test reports available

Ask DERFLEX sales for certificates relevant to your market or project.

Sold to Countries — Global Distribution

DERFLEX heavy duty tarpaulins are exported worldwide. Key markets include:

North America: United States, Canada, Mexico
Europe: Germany, UK, France, Spain, Italy
Middle East & Africa: UAE, Saudi Arabia, South Africa
Asia Pacific: Australia, New Zealand, Japan
Latin America: Brazil, Chile, Argentina

We provide export documentation, packing options and logistics support for sea/air shipments.

Frequently Asked Questions (FAQs)

Q1 — What gsm (weight) should I choose for truck tarpaulins?

A: For most trucking applications 650–900gsm offers an excellent balance of strength and flexibility. For heavy industrial or offshore use, select 1050–1200gsm.

Q2 — Can DERFLEX tarpaulins be printed with my logo?

A: Yes — full-color digital printing and screen printing are supported. For best results, provide high-resolution artwork and request a color proof.

Q3 — How do I repair a tear on a PVC tarpaulin?

A: Small tears can be repaired using PVC repair tape or hot-air welding. For structural damage, DERFLEX can advise on welded patch repairs or rebuild.

Q4 — Are these tarpaulins flame retardant?

A: Flame-retardant grades are available on request and can meet EN / NFPA standards depending on specification. Always request the relevant certificate for compliance.

Q5 — What is the expected lifespan?

A: Lifespan depends on grade, usage and environment — 3–10 years is typical. Higher gsm and PVDF lacquers extend outdoor life in high-UV climates.

Buying Guide — How to Order

When placing an order, provide:

Desired material & gsm (e.g., PVC 900gsm)
Final dimensions and quantity
Required certifications (fire retardant, REACH, etc.)
Finishing details (eyelets, hems, welded seams, printed logo)
Destination port and required shipping terms (FOB, CIF)

DERFLEX sales will supply samples, lead times, price quotations and test reports. For large or technical projects we recommend a pre-production sample for approval.

Ready to Protect Your Cargo & Assets?

DERFLEX supplies factory-direct heavy duty tarpaulins with flexible customization and global delivery. Request a sample, receive a competitive quote and get technical support from our specialists.

Request a Quote & Sample — Contact DERFLEX
